Surface mounted door switch sensor in ABS Housing with size 27*14*8MM

Product Categories
JSUS ELECTRONIC TECHNOLOGY CO.,LIMITED
Contact Now

Surface mounted door switch sensor in ABS Housing with size 27*14*8MM

Place of Origin : China

Brand Name : JSUS

Certification : CE&ROHS

Model Number : JS-38B

MOQ : 1000PCS

Price : FOB SHENZHEN USD

Packaging Details : 20sets/Bag

Delivery Time : 5-7days

Payment Terms : L/C,T/T,Paypal, Western Union

Supply Ability : 200,000sets/month

Reed Switch : OKI

Contact Now

www.jsustech.com

Model: JS-38B

Brand: JSUS
Certificate: CE
Dimension: 27*14*8mm
Housing: ABS, white/brown
Gap: 15-25mm; 20-25mm available
Output: N.C. N.O. & Changeover available
Leads: 1007UL24AWG330mm
Package:
Inner packing: 20sets/Bag
Outer packing: 1600 sets/carton
Gross Weight: 20KG
Remarks: 4 screws included, with double-sided tapes sitcked on the bottom, 3M brand available

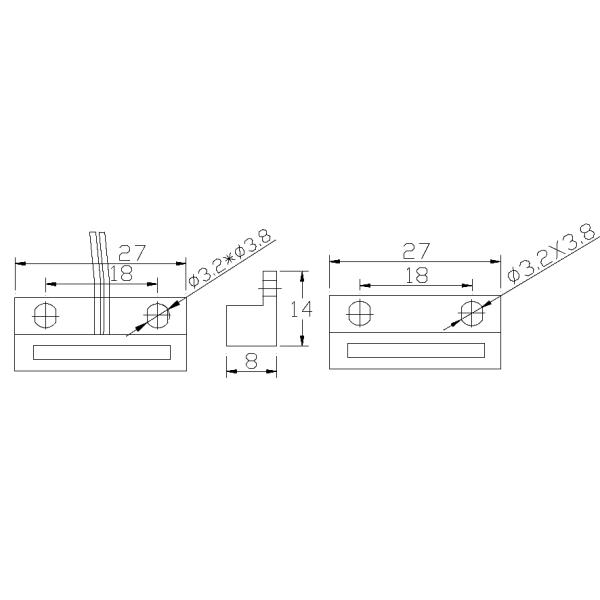

2.0 Dimension(mm)

Surface mounted door switch sensor in ABS Housing with size 27*14*8MM

3.0 Order information

Specification Output Casing Material Action Gap(mm) Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ) MOQ(PCS)
NC-ABS-1525 NC ABS 15-25 0.5A/100V/10W/200mΩ 0
NC-ABS-1525 NC ABS 15-25 0.5A/100V/10W/200mΩ 1000
NO-ABS-1525 NO ABS 15-25 0.5A/30V/3W/200mΩ 500

Key words : magnetic contact reed switch magnetic switch sensor door switch sensor surface mount switch
